e-FUTURION Q10
The 100% Fossil-Free Revolution in Vacuum Loading
The brutal power of a diesel machine meets the quiet, clean efficiency of the future.
8,500 m³/h
Suction Power
490 kWh
Motor Power
5,200 kg
Max Load Capacity
— Why Choose the e-futurion q10
Five Defining Advantages
Every design decision on the Q10 was driven by one goal: make the world’s most capable electric vacuum loader — with zero compromise.
Zero Compromise on Power
Equipped with a full-size vacuum pump delivering 8,500 m³/h, driven by a 490 kW motor — matching the exact performance of our diesel models.
Class-Leading Battery
A massive 540 kWh total battery capacity engineered into a Volvo 6×2 chassis. With a short 4,900 mm wheelbase, total length stays under 10 meters.
"Charge-While-Working" Technology
Plug the onboard charger into standard 32A/63A three-phase outlets and charge simultaneously while operating in stationary mode — massively extending daily operational uptime.
Advanced Energy Efficiency
The electric driveline completely stops the vacuum pump in an unloaded position and operates across a wider speed range without gear changes, eliminating wasteful energy consumption at every stage of the job.
Unrestricted Access
The fossil-free operation unlocks highly lucrative restricted zones. Safely deploy indoors, in tunnels, and in strictly regulated zero-emission city centres — where diesel machines simply cannot go.
75%
of Daily Missions Complete on a Single Charge
— System Demonstration

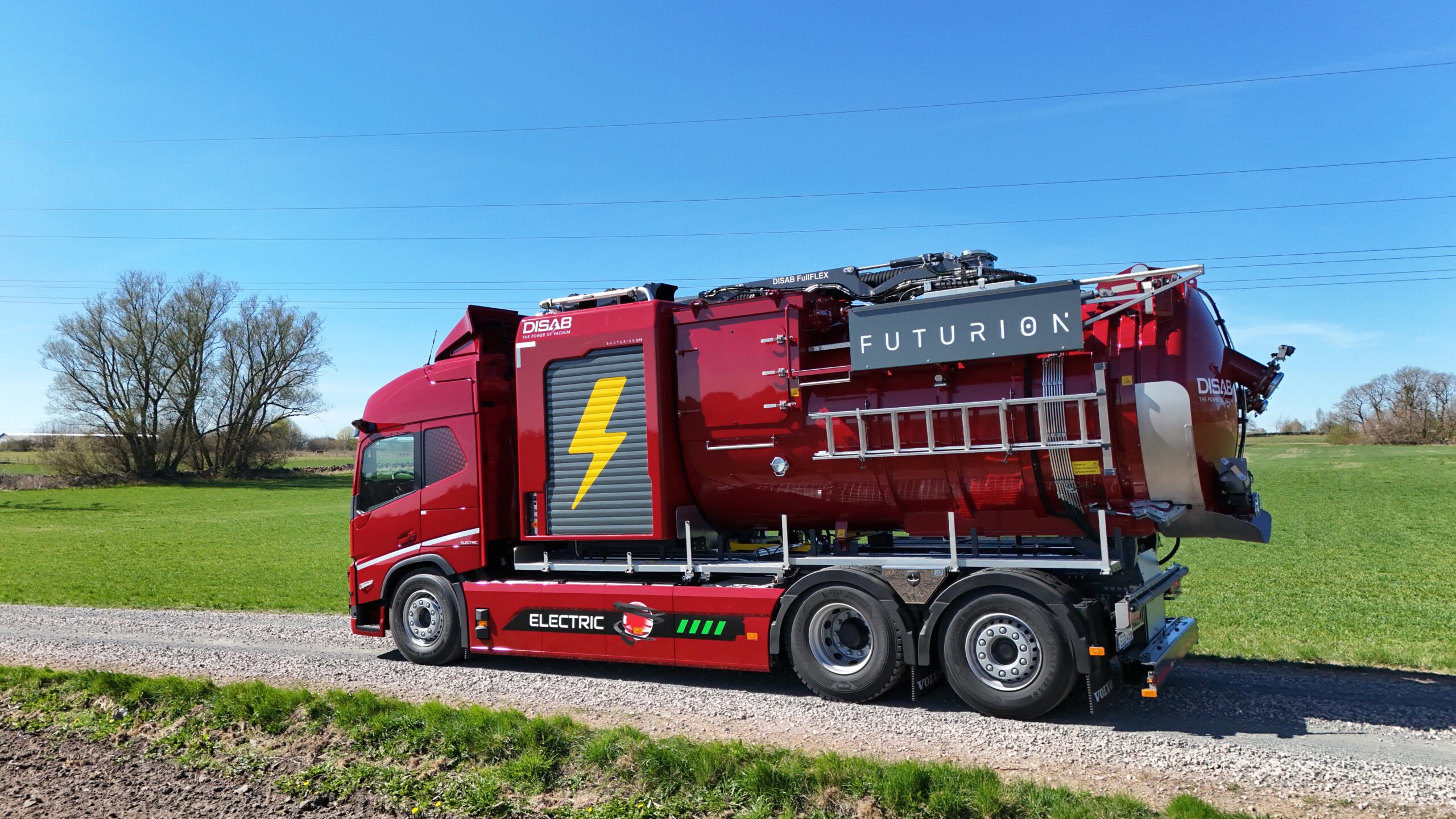

First look at the e-Futurion Q10
— Product Overview
Engineering That Moves Industries Forward
DISAB has been an industry leader in vacuum loading solutions for decades. The e-Futurion Q10 represents the next chapter: full-performance, zero-emission, unrestricted access.
01
Built for Extremes
Every component of the e-Futurion Q10 is engineered to industrial tolerances. Here are the numbers that matter on the job site.
02
300 kW DC Fast Charge
60-minute charge during a standard lunch break is all it takes to reach 95% daily mission completion.
03
75% of Daily Missions Complete on a Single Charge
For the most demanding days, a simple 60-minute fast charge (300 kW) during a lunch break boosts your full-workday mission success rate to 95%.
— Technical Data
Specifications
e-Futurion Q10
e-futurion q10
— Common Questions
Frequently Asked Questions
Can the machine charge while working?
Yes, it can charge simultaneously while working in a stationary position. Trickling in 5 to 6 hours of supplemental energy extends the running time significantly.
Will the electric model compromise on vacuum power compared to current diesel trucks?
No. Operators expect the exact same performance. The electric model is equipped with a full-size vacuum pump capable of 8500 m³/h and utilizes a further developed power unit to ensure top-tier suction performance.
Is the battery capacity sufficient to last for a full, demanding workday?
Yes, with minor operational adjustments. Featuring a high-capacity 540 kWh battery, the system covers over 75% of standard missions on a single charge. It also supports a 60-minute fast charge (300 kW) to boost performance for a full shift.
Will the large battery packs make the truck too bulky to maneuver on standard job sites?
No, agility was a primary design focus. Despite the six battery packs, the Volvo 6×2 chassis (4900 mm wheelbase) maintains a short, flexible footprint with a maximum length of 10 meters.
— Get in Touch
Ready to Optimise Your Operation?
Our team of specialists is ready to help you find the right configuration for your operation.
